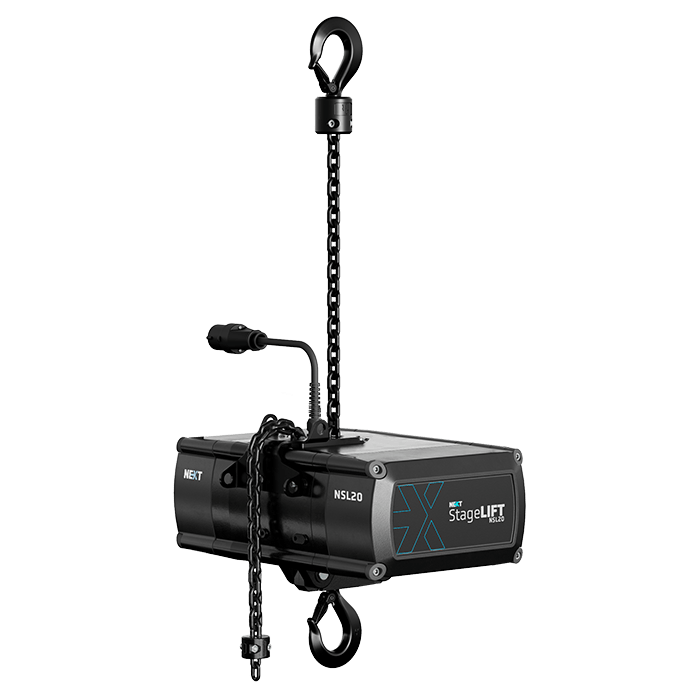

The NSL20 is our strongest NEXT StageLIFT, specifically built for heavy duty applications. Its fiber reinforced body is engineered to withstand rough handling and transport while offering a 2,000 kg load capacity.
A modular design ensures all critical components like the motor, brake, and electronics are easily accessible for maintenance. For maximum safety, the slip clutch maintains a permanent secure connection between the load and the brake.
THE ESSENTIALS
| Productcode | NSL20 |
| Length | 761 mm | 29.96 in |
| Width | 423 mm | 16.65 in |
| Height | 236 mm | 9.30 in |
| Height hook to hook | 868 mm | 34.17 in |
| Load capacity (D8 plus) | 2,000 kg | 4408 lbs |
| Lifting speed at 50Hz | 4 m/min | 13 ft/min |
| Power at 50 Hz | 0.66 kW | 0.9 hp |
| Chain pitch | 11.3 x 31 mm | 0.44 x 1.22 in |
| Current at full load 230V, 50 Hz | 2.90 A |
| Current at full load 400V, 50 Hz | 1.70 A |
| Weight without chain (body) | 87 kg | 191.8 lbs |
| Chain weight | 2.85 kg/m | 1.92 lb/ft |
